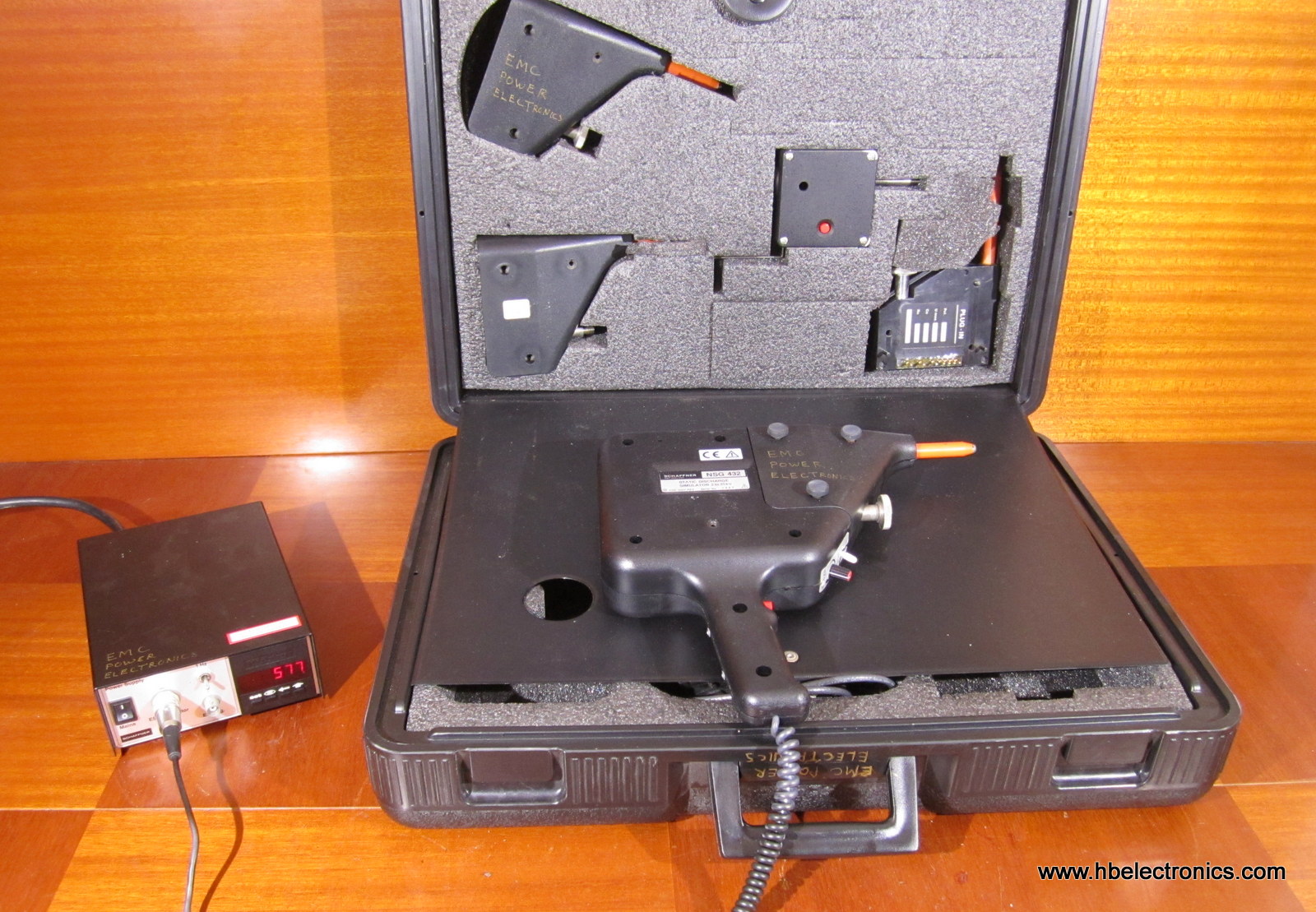

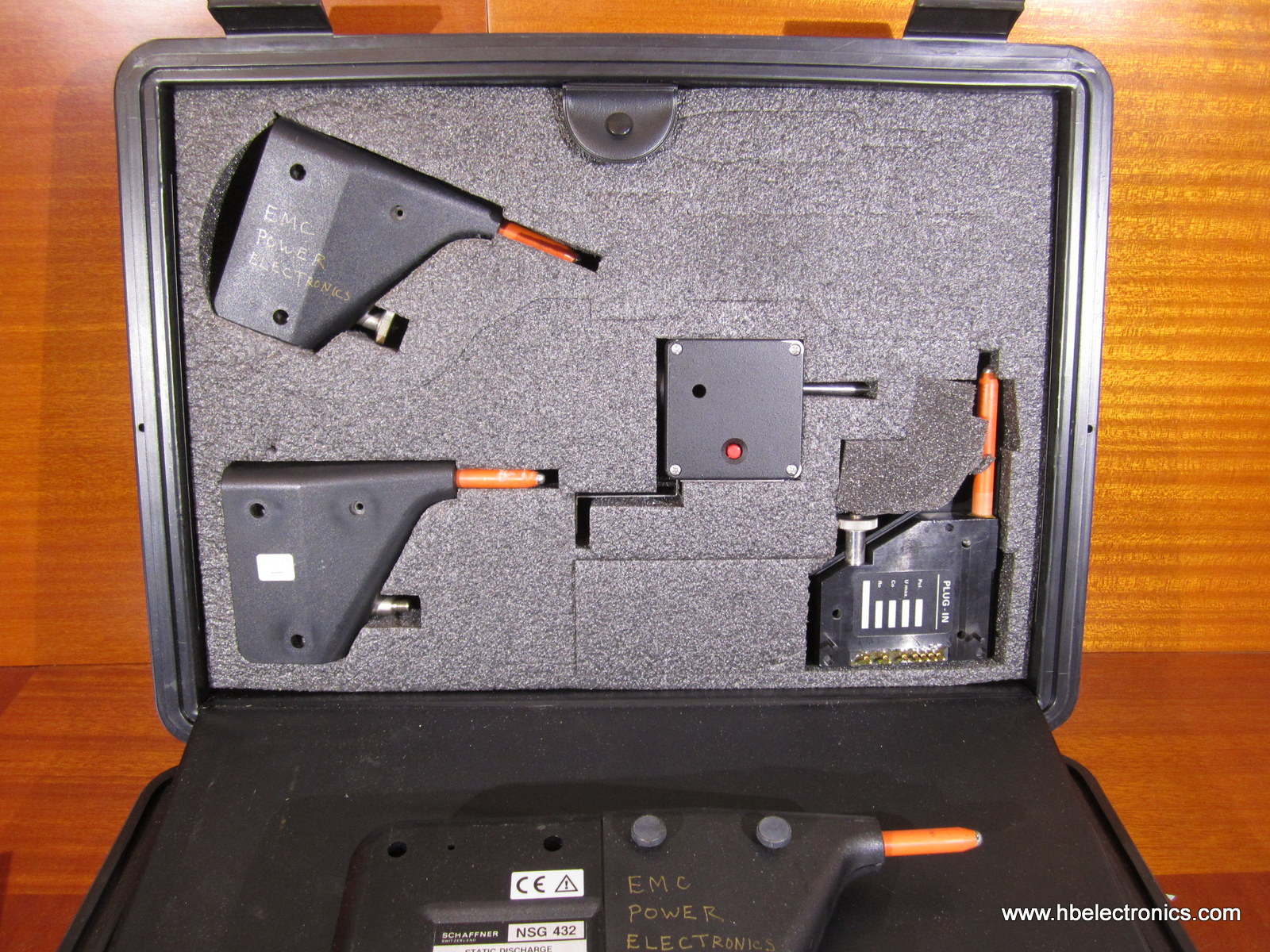

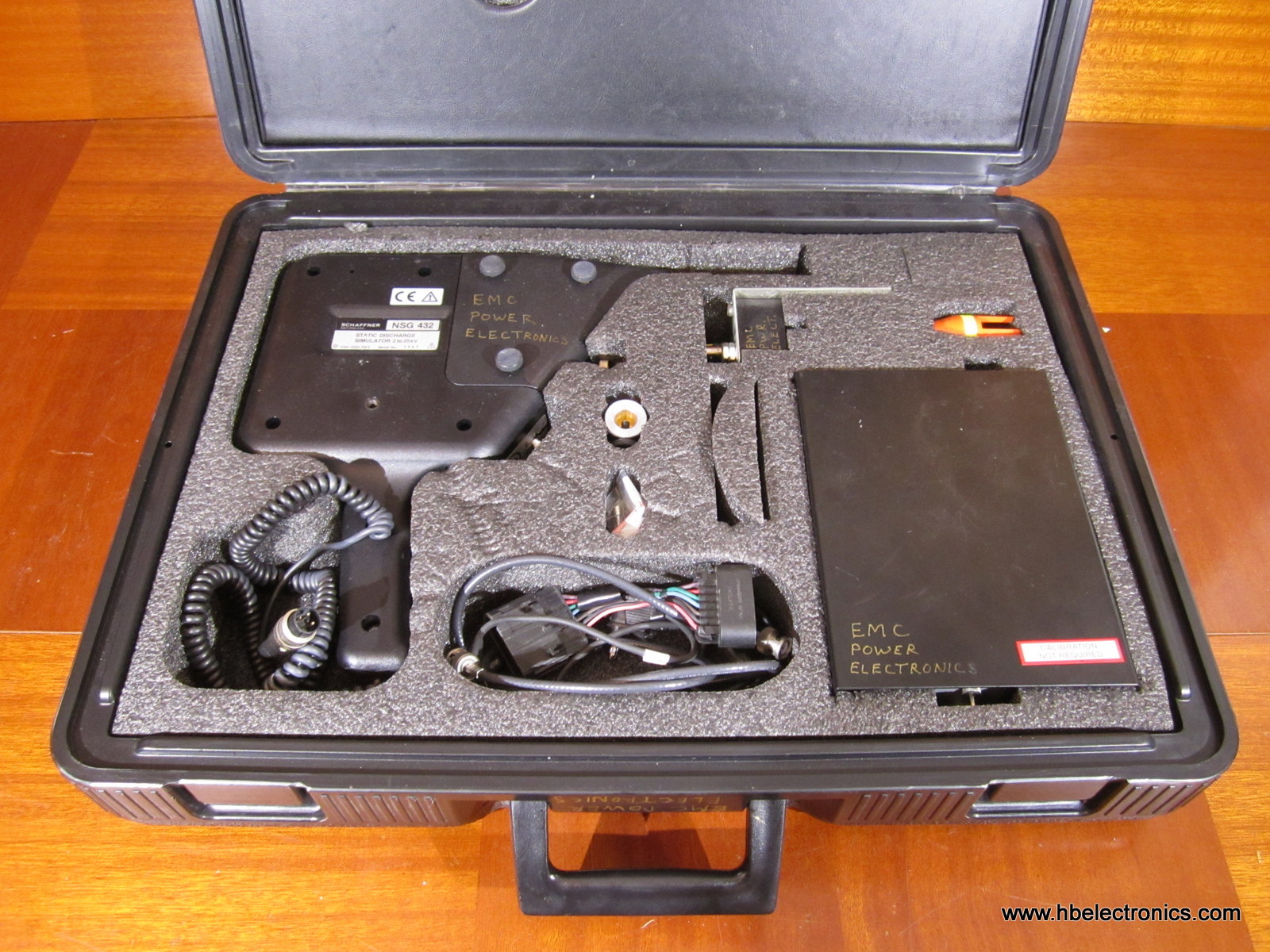

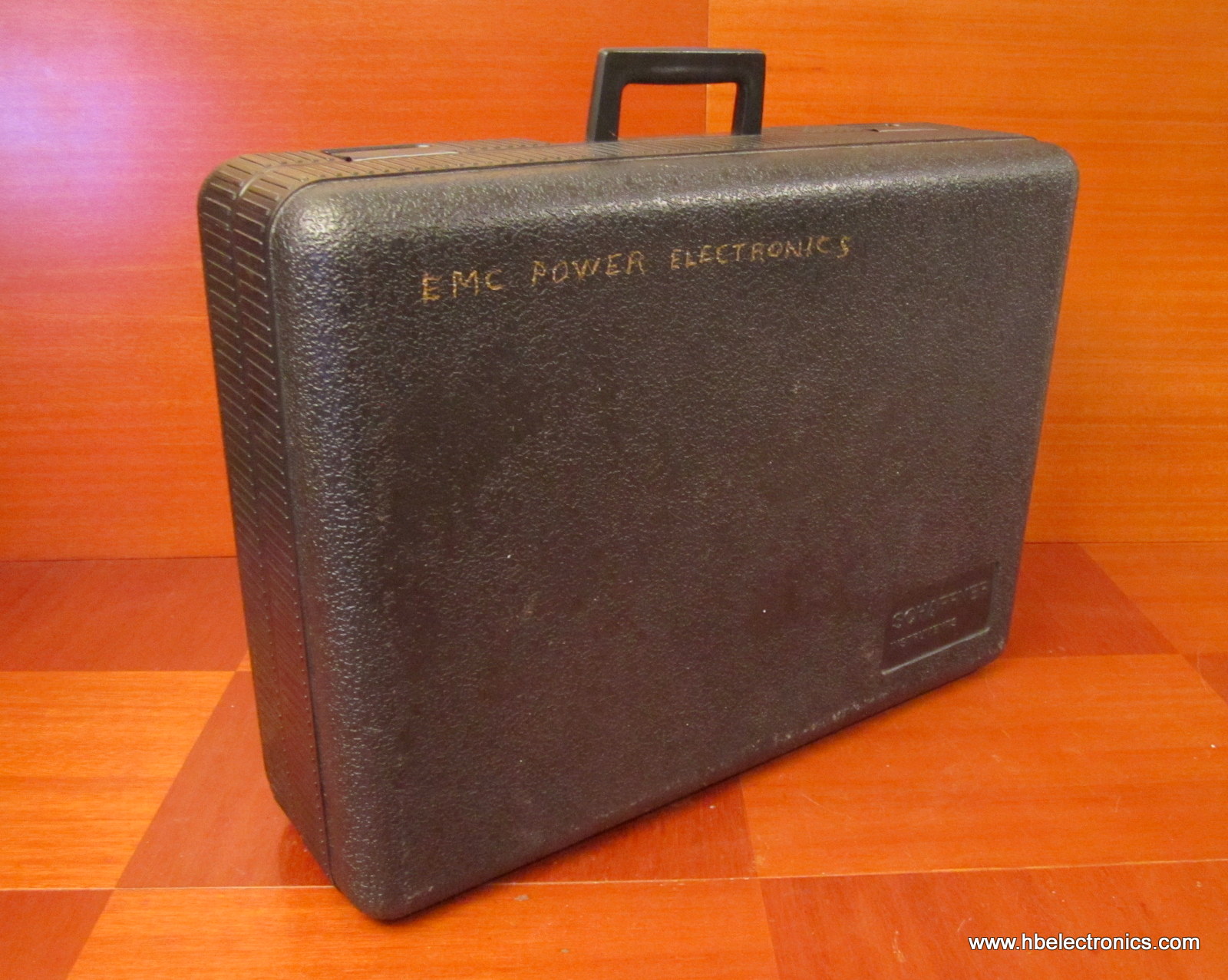

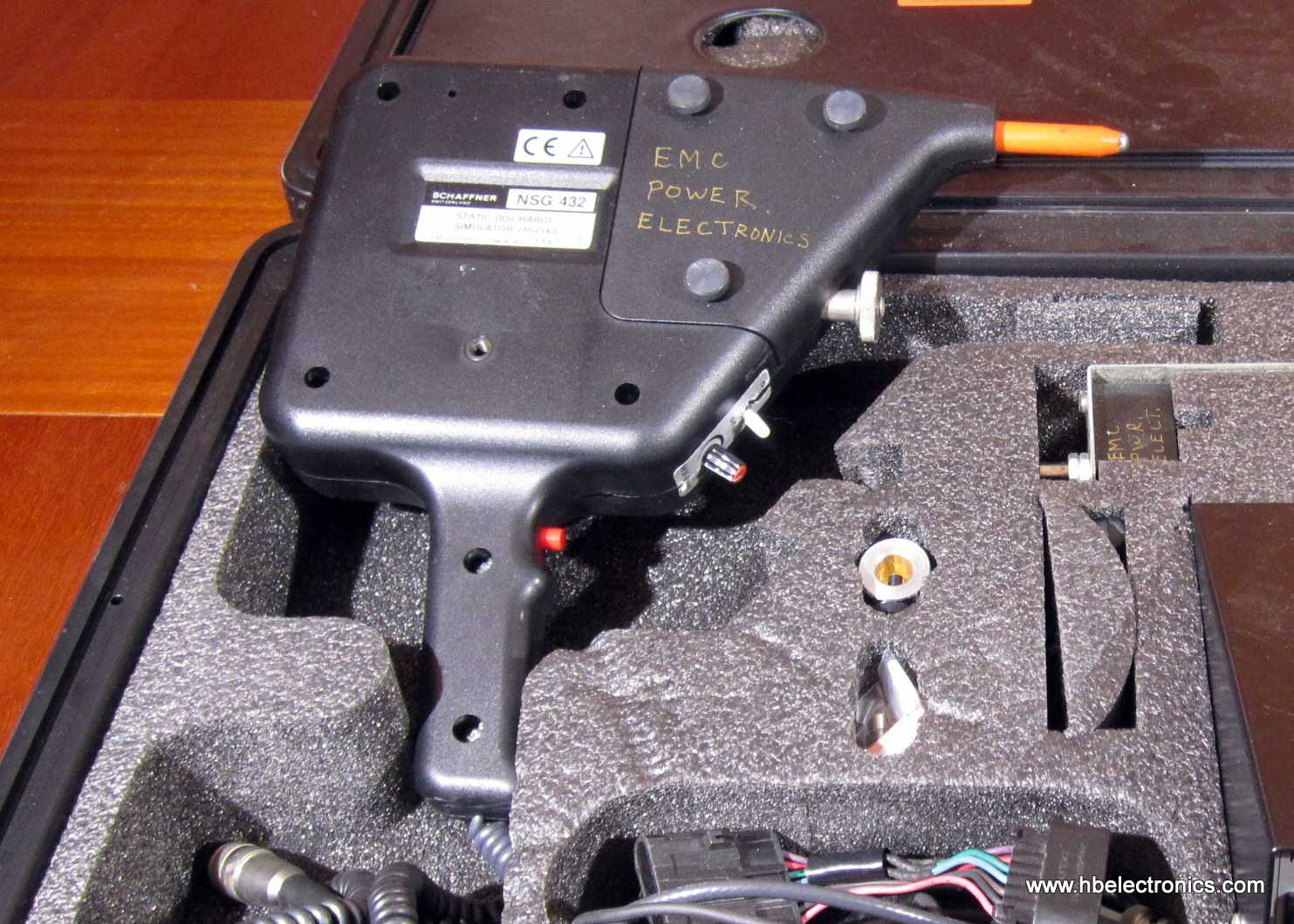

Schaffner NSG432 with 4 plug-ins, accessories and case. The components are working but the handpiece has an issue with the display (please see last picture), and the voltage control is temperamental.
For very high voltage discharges, such as might be required to meet military specifications or for special applications, the NSG 432 ESD simulator system from Schaffner can be used to generate electrostatic discharges up to 25kV. The NSG 432 is a compact, hand-held instrument, with a range of high voltage discharge networks for testing to various standards, including IEC 61000-4-2.
Technical Specifications (in conformity with IEC 801-2)
Discharge voltage V0: 2 - 25kV
• Polarity: positive/negative (depending on discharge network)
• Discharge capacitor Cs: 150 pF ± 10%
• Discharge resistor Rd: 330 ohms ± 10%
• Operating modes: single/repetitive discharge
• Rise time (air discharge): < 1 ns for voltages < 8 kV
• Rise time (with contact discharge adapter): 0.7 - 1 ns
|
If you are interested in this item or a similar model,
please contact us:
sales @ hbelectronics.com
Or call
(714) 963-9100
|
Click any image to enlarge
|
